Unitec 1640 ATC CNC Router Machine For Flexble Material

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

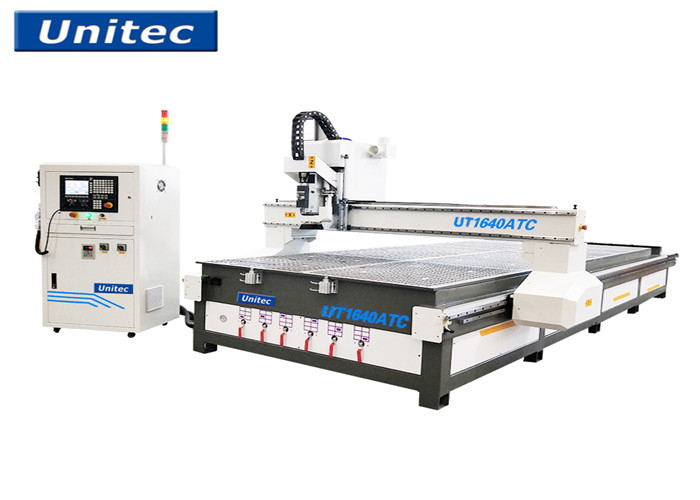

Unitec 1640 ATC CNC Router Machine For Flexble Material

Unitec 1640 ATC CNC Router Machine For Flexble Material
Unitec 1640 ATC CNC Router Machine For Flexble Material

Large Image :  Unitec 1640 ATC CNC Router Machine For Flexble Material

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1640
Detailed Product Description
XYZ Travel Size: 1650X4300X220mm Max Working Size Voltage: 1600X4000X160mm
Table Size: 1600X4000mm Transmission Type: XY/Z XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: Vacuum
Vacuum Pump: 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle
High Light:

1600X4000mm ATC CNC Router Machine

,

1640 ATC CNC Router Machine

,

Auto Feeding Laser Cutting Machine

CNC 1640 Automatic Feeding Laser Cutting Machine for Flexble Material



This machine is our auto feeding laser cutting machine, which is widely used in textile industry and other realted lines, this machine can feed roller material automatiocally, this saves a lot of time and energy for you. And because this machine is laser cutting machine, it automatically has burnt sealing edge, avoid thread loosing of the raw materials.



Applications and Material



Furniture Industry: wood doorcabinetclassic furniturepanel furniture etc

Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc

ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel





XYZ Travel Size

1650X4300X220mm



Max Working Size

1600X4000X160mm
Table Size 1600X4000mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm



Max Travel Speed

40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System / Ncstudio or Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 3200KG
Overall Dimension 2300X4800X1900mm


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
