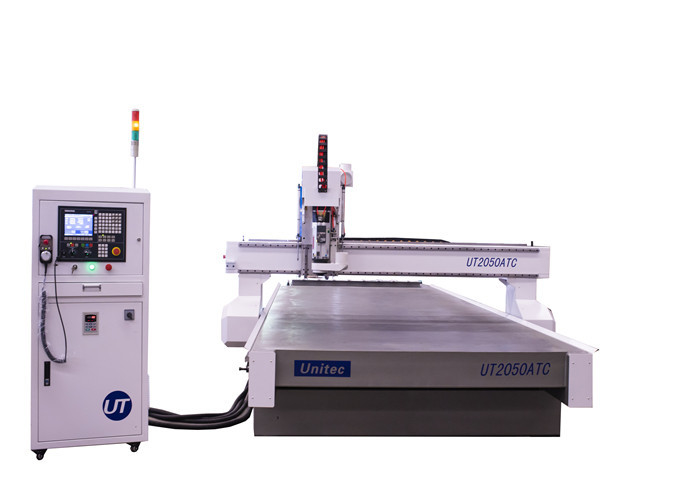

4 Axis 2050 2000X5000mm MDF Cutting CNC Machine For Table
Product Details:
Place of Origin: | China |
Brand Name: | Unitec |
Certification: | CE |
Model Number: | UT2050 |
Detail Information |
|||
Vacuum Pump: | 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump | Spindle Power: | 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle |
---|---|---|---|
Transmission Type: | XY/Z XY Rack/Z Ball Screw | Table Type: | Vacuum |
XYZ Travel Size: | 2050X5000X220mm | Max Working Size Voltage: | 2000X5000X160mm |
Table Size: | 2000X5000mm | Guide Rail: | Linear Guide |
High Light: | 2050 MDF Cutting CNC Machine,Unitec MDF Cutting CNC Machine,2000X5000mm MDF Cutting CNC Machine |
Product Description
2050 Atc MDF Cutting CNC Machine, 4 Axis CNC Engraving Machine for Wood, Table, Chair Legs
1. Air cooling spindle----9 KW Italy HSD atc air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.
2.Taiwan SYNTEC 4 axis control system----Easy operation. Support offline operation,more table.
3. 850w Japan YASKAWA servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.
4. HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
5. Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
Applications and Material
- Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
- Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
- ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
|
2050X5000X220mm | |
|
2000X5000X160mm | |
Table Size | 2000X5000mm | |
Transmission Type | XY/Z XY rack/Z ball screw | |
Guide Rail | Linear Guide | |
Table Type | vacuum | |
Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump | |
Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle | |
Tool Changer | Linear Tool Changer | |
Spindle Speed | 24000rpm | |
|
40000mm/min | |
Max Work Speed | 20000mm/min | |
Motor | AC servo motor | |
Work Voltage | AC380V 50HZ | |
Controller System | / Ncstudio or Syntec | |
|
0.05mm | |
|
0.01mm | |
File Format | G/PLT G code or PLT | |
Overall Weight | 3200KG | |
Overall Dimension | 2700X3800X1900mm |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
