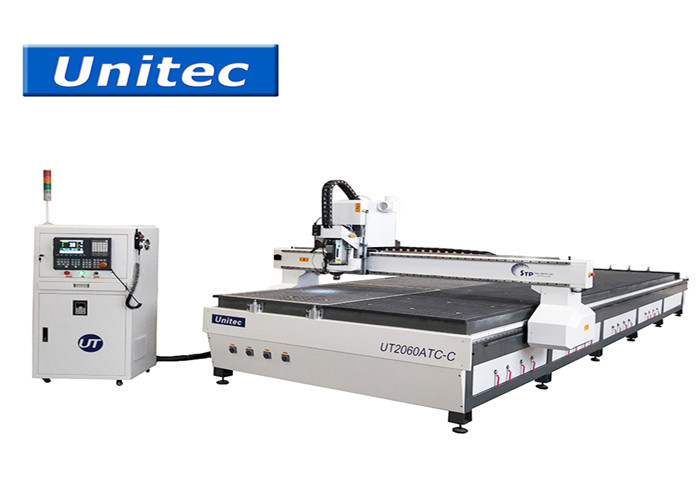

Servo Motor Automatic ATC CNC Router Machine For Wood Furniture
Product Details:
Place of Origin: | China |
Brand Name: | Unitec |
Certification: | CE |
Model Number: | UT2060 |
Detail Information |
|||
Vacuum Pump: | 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump | Spindle Power: | 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle |
---|---|---|---|
Table Size: | 2000X6000mm | Transmission Type: | XY/Z XY Rack/Z Ball Screw |
Max Working Size Voltage: | 2000X6000X160mm | Guide Rail: | Linear Guide |
XYZ Travel Size: | 2050X6000X220mm | Table Type: | Vacuum |
High Light: | 2060 ATC CNC Router Machine,0.05mm ATC CNC Router Machine,3200KG ATC CNC Router Machine |
Product Description
Servo Motor Automatic Tool Changer Atc 2060 CNC Router for Wood Furniture
Applications and Material
- Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
- Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
- ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
Woodworking industry: | Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture. |
Artwork &Decoration Industry: | Wood crafts, gift box, jewelry box and other exquisite art crafts |
Music Industry: | Musical instruments; Loudspeaker box |
Mold Industry: | Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossed mould, biscuit, candy, chocolate mould; Artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold. |
Advertising Industry: | Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, lightbox; |
XYZ Travel Size |
2050X6000X220mm | |
Max Working Size |
2000X6000X160mm | |
Table Size | 2000X6000mm | |
Transmission Type | XY/Z XY rack/Z ball screw | |
Guide Rail | Linear Guide | |
Table Type | vacuum | |
Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump | |
Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle | |
Tool Changer | Linear Tool Changer | |
Spindle Speed | 24000rpm | |
Max Travel Speed |
40000mm/min | |
Max Work Speed | 20000mm/min | |
Motor | AC servo motor | |
Work Voltage | AC380V 50HZ | |
Controller System | / Ncstudio or Syntec | |
Processing Accuracy |
0.05mm | |
Repeat Positioning Accuracy |
0.01mm | |
File Format | G/PLT G code or PLT | |
Overall Weight | 3200KG | |
Overall Dimension | 2700X3800X1900mm |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
