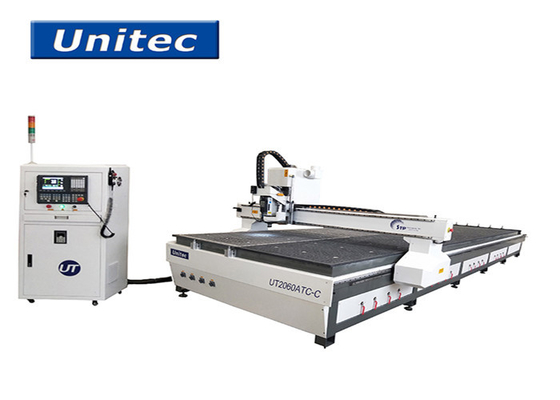

Vacuum Table 2000X6000mm 2060 ATC CNC Router Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT2060 |
|
Detail Information |
|||
| Max Working Size Voltage: | 2000X6000X160mm | Table Size: | 2000X6000mm |
|---|---|---|---|
| Table Type: | Vacuum | Vacuum Pump: | 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump |
| Transmission Type: | XY/Z XY Rack/Z Ball Screw | XYZ Travel Size: | 2050X6000X220mm |
| Guide Rail: | Linear Guide | Spindle Power: | 9KW China ATC Spindle Or Italy HSD ATC Spindle |
| High Light: | 2060 ATC CNC Router Machine,2000X6000mm ATC CNC Router Machine,Vacuum Table ATC CNC Router Machine |
||
Product Description
Table Beds Furniture Atc CNC Wood/Wooden Door 2060 Atc CNC Router
1. Brief Introduction of Linear ATC Wood CNC Router
1) FM1325-L Linear ATC wood cnc router is qualified for woodcraft / wood carving during mass-producing of furniture with the vacuum holding way and dust collector.
2) LATC(linear auto tool changer) with 8 tool holders and 8 tool forks, could save a lot of working time and is very convenient.
3) Well-known HSD or China Brand Auto Tools Changing spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine's high speed and accuracy.
Applications and Material
- Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
- Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
- ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
|
XYZ Travel Size |
2050X6000X220mm | |
|
Max Working Size |
2000X6000X160mm | |
| Table Size | 2000X6000mm | |
| Transmission Type | XY/Z XY rack/Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | vacuum | |
| Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump | |
| Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle | |
| Tool Changer | Linear Tool Changer | |
| Spindle Speed | 24000rpm | |
|
Max Travel Speed |
40000mm/min | |
| Max Work Speed | 20000mm/min | |
| Motor | AC servo motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | / Ncstudio or Syntec | |
|
Processing Accuracy |
0.05mm | |
|
Repeat Positioning Accuracy |
0.01mm | |
| File Format | G/PLT G code or PLT | |
| Overall Weight | 3200KG | |
| Overall Dimension | 2700X3800X1900mm | |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
