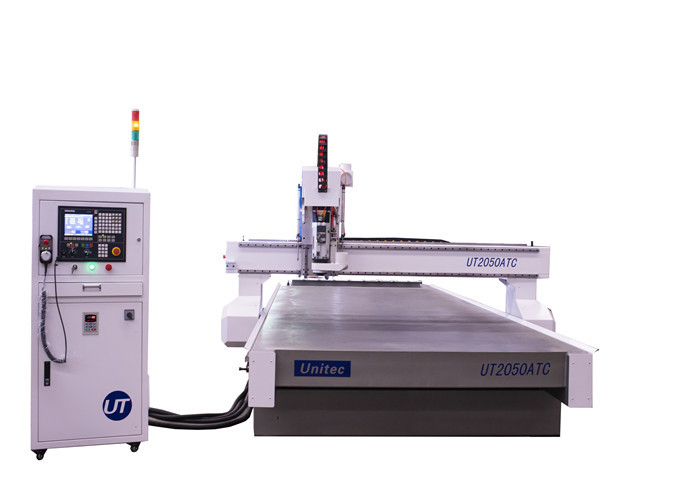

2050 20000mm/min Pneumatic ATC CNC Router Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT2050ATC |
|
Detail Information |
|||
| XYZ Travel Size: | 2050X5000X220mm | Max Working Size Voltage: | 2000X5000X160mm |
|---|---|---|---|
| Table Size: | 2000X5000mm | Transmission Type: | XY/Z XY Rack/Z Ball Screw |
| Guide Rail: | Linear Guide | Table Type: | Vacuum |
| Vacuum Pump: | 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump | Spindle Power: | 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle |
| High Light: | 2050 ATC CNC Router Machine,Unitec ATC CNC Router Machine,20000mm/min ATC CNC Router Machine |
||
Product Description
UT2050 Atc Router Machine Pneumatic Atc Cnc Cutting And Drilling Tapping Router Machine
1). Adopt linear-square orbit, whole machine is welded with seamless steel structure, can heavy loading.
2). Taiwan HIWIN square guide rail, ball screw for z axis and gear-wheel for x and y axis
3). Taiwan Syntec control system. Bus control, namely a line control all drives, convenient maintenance.
4).Italy HSD 9.0kw air cooling spindle( 0-18000rpm ),Water cooling spindle (0-24000rpm)
5). Automatic tool change, convinient and swift
6). With better compatibility, can math with many programs such as Type3, artcam, castmate, CAM, etc.
Applications and Material
- Furniture Industry: wood doorcabinetclassic furniturepanel furniture etc.
- Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
- ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
|
|
2050X5000X220mm | |
|
|
2000X5000X160mm | |
| Table Size | 2000X5000mm | |
| Transmission Type | XY/Z XY rack/Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | vacuum | |
| Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump | |
| Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle | |
| Tool Changer | Linear Tool Changer | |
| Spindle Speed | 24000rpm | |
|
|
40000mm/min | |
| Max Work Speed | 20000mm/min | |
| Motor | AC servo motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | / Ncstudio or Syntec | |
|
|
0.05mm | |
|
|
0.01mm | |
| File Format | G/PLT G code or PLT | |
| Overall Weight | 3200KG | |
| Overall Dimension | 2700X3800X1900mm | |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
