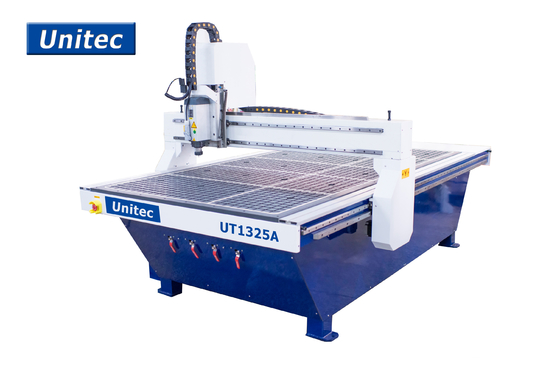

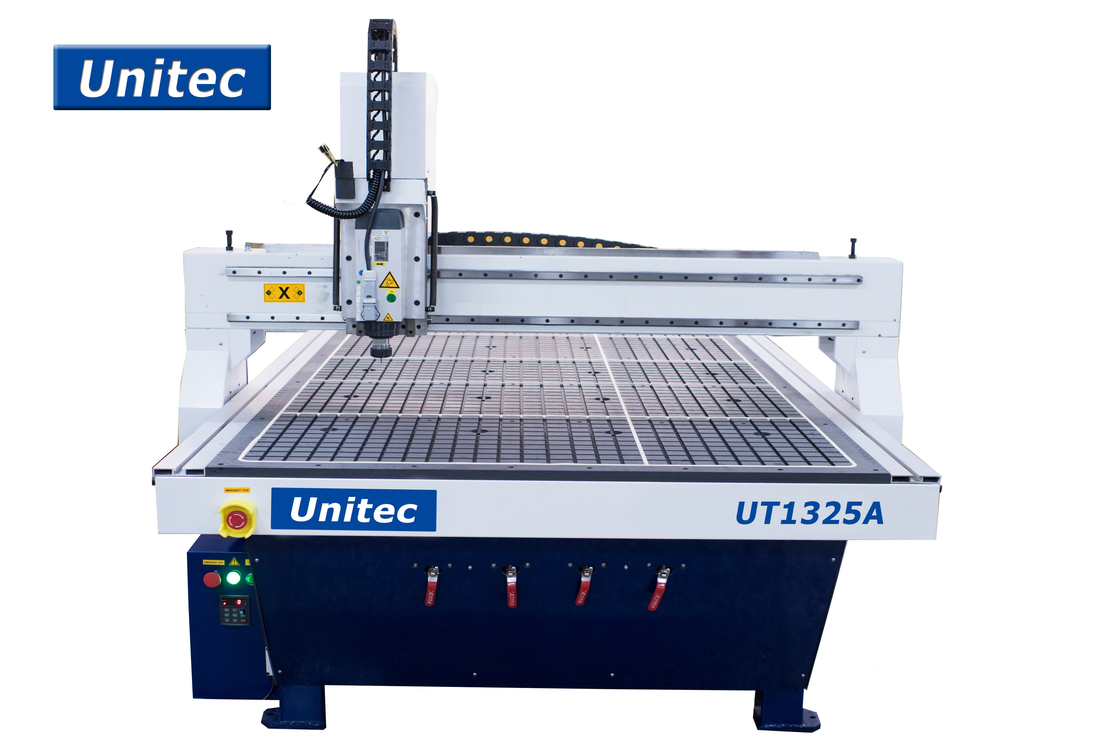

4th Rotary UT1325A Sign Making CNC Router For Aluminum

4th Rotary UT1325A Sign Making CNC Router For Aluminum

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Get Best Price Contact Now

Detail Information

XYZ Travel Size: 1300X2500X150mm Max Working Size: 1300X2500X150mm
Table Size: 1400X2500mm Transmission Type: XY/Z XY Rack/Z Ball Screw
Table Type: Vacuum Table Guide Rail: Linear Guide
Spindle Power: 3KW/5.6EL 3KW China Water Cool 5.6KW Italy Elte Spindle Spindle Speed: 24000/18000rpm
High Light:

1325A Sign Making CNC Router

,

1100KG Sign Making CNC Router

,

UT1325A Sign Making CNC Router

Product Description

CNC Router1325 with 4th Rotary Axis for Aluminum, Wood, MDF





Our comapany is a professional manufacturer of engraving machines,cuting plotters,marble CNC routers,laser engraving machines and mold engraving machines,We offer ODM OEM serivice to meet your need.If you are interested in our products.pls don`t hestate and kindly send email to us to communicate more business.



1. Mode 1325  machine is specially designed for woodworking, metal and advertisement.It has high precision, fast speed, cost-effective.
2. By the way of seamless welding and vibrating treatment, the lathe bed steel structure is firm, durable, strength steel and non-deformation.
3. Computer cabinets and Weihong control system make the machine have good stability and high reliability.
4. Using automatic lubrication system, it's convenient for maintenance.
5. Owns more functions of power-off restoration, continuation on break point, working time anticipation etc.
6. XYZ axis adopt high-precision linear and square rail from Yintai in Taiwan.High-precision and durable no-learance rolling ball screws for Z axis, it's imported from Yintai brand in Taiwan, rack
Drive for X Y axis, high-precision, faster and better efficiency.





XYZ Travel Size

1320X2520X150mm



Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type Vacuum table
Spindle Power

3KW/5.6EL 3KW China water cool

5.6KW Italy Elte spindle

Spindle Speed 24000/18000rpm




Max Travel Speed

14000mm/min



Max Processing Speed

12000mm/min
Motor

/

Stepper or Servo

Work Voltage AC380V 50HZ



Controller System

Ncstudio Controller



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT; G code or PLT
Overall Weight 1100KG



Overall Dimension

1950X3000X1600mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.



4th Rotary UT1325A Sign Making CNC Router For Aluminum 04th Rotary UT1325A Sign Making CNC Router For Aluminum 1

4th Rotary UT1325A Sign Making CNC Router For Aluminum 24th Rotary UT1325A Sign Making CNC Router For Aluminum 34th Rotary UT1325A Sign Making CNC Router For Aluminum 44th Rotary UT1325A Sign Making CNC Router For Aluminum 5
