600mmX1200mm ATC CNC Router Machine For Aluminum Brass Copper

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

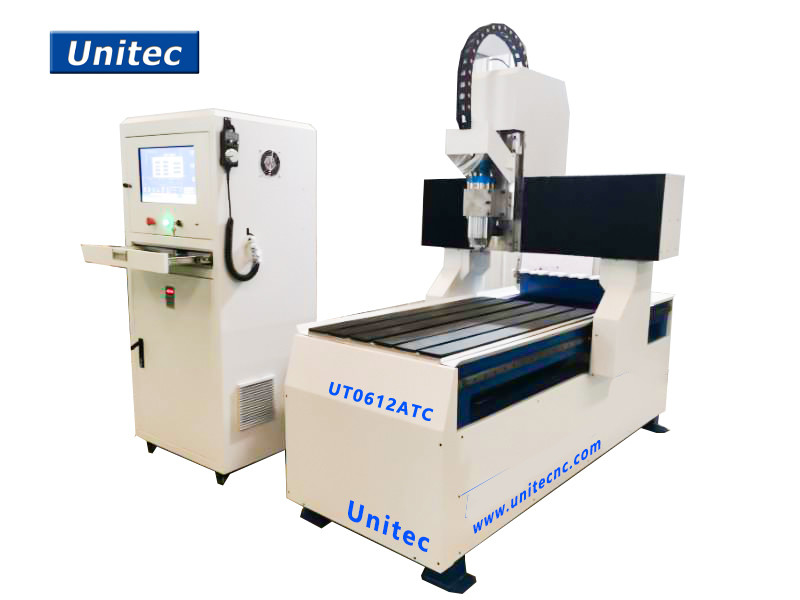

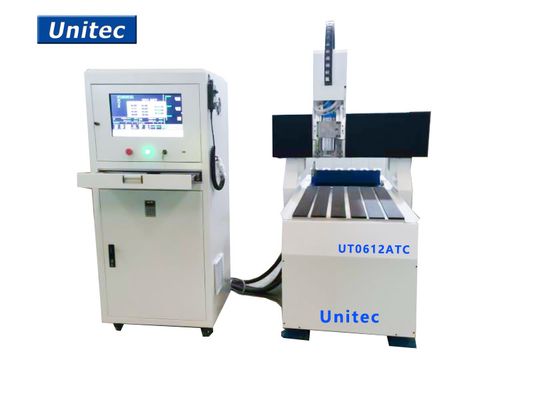

600mmX1200mm ATC CNC Router Machine For Aluminum Brass Copper

600mmX1200mm ATC CNC Router Machine For Aluminum Brass Copper
600mmX1200mm ATC CNC Router Machine For Aluminum Brass Copper 600mmX1200mm ATC CNC Router Machine For Aluminum Brass Copper

Large Image :  600mmX1200mm ATC CNC Router Machine For Aluminum Brass Copper

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT0612ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Size: 600mm X 1200mm Spindle: 5KW China ATC Spindle
Transmission: XYZ Ball Screw Motor: AC Servo Motor
Tool Changer Type: Linear ATC With 6 Tool Position Controller: Ncstudio Or Syntec
High Light:

600mmX1200mm ATC CNC Router Machine

,

0612 ATC CNC Router Machine

,

20000mm/min ATC CNC Router Machine

600mm X 1200mm CNC Milling Machine for aluminum brass copper university education



Applications and Materials

Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel



Highlights

1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability

2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.

3. Various of table styles makes convenient clamping materials and improves overall production efficiency

4. Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material

5. Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.

6. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.

7. accessories which will ensure the overall running performance

8. Strict compliance with CE electrical standards for circuit design and production, and all Parts have safe and reliable protection device.



XYZ Travel Size 600X1200X220mm
Max Working Size 600X1200X220mm
Table Size 650 X 1250mm
Transmission Type XYZ ball screw
Guide Rail Taiwan Linear Guide
Table Type T slot
Spindle Power 5KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm
Max Travel Speed 40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1800KG
Overall Dimension 2000X3600X1900mm
