4 Feet X 4 Feet 2.2kw Cnc Router Engraver For Acrylic Pvc Solid Wood

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

4 Feet X 4 Feet 2.2kw Cnc Router Engraver For Acrylic Pvc Solid Wood

4 Feet X 4 Feet 2.2kw Cnc Router Engraver For Acrylic Pvc Solid Wood
4 Feet X 4 Feet 2.2kw Cnc Router Engraver For Acrylic Pvc Solid Wood 4 Feet X 4 Feet 2.2kw Cnc Router Engraver For Acrylic Pvc Solid Wood

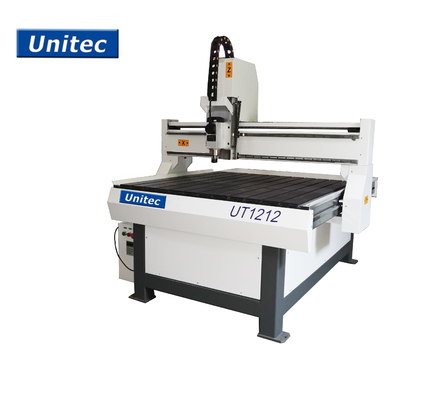

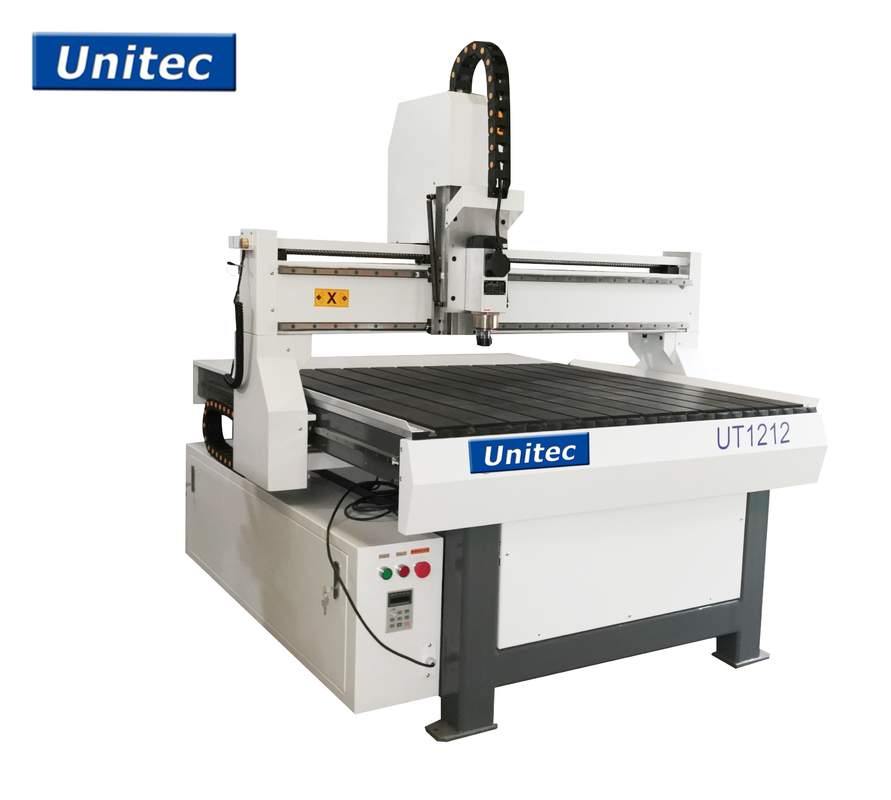

Large Image :  4 Feet X 4 Feet 2.2kw Cnc Router Engraver For Acrylic Pvc Solid Wood

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1212

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Packaging Details: Plywood steel pipe
Detailed Product Description
Working Size: 1200mm X 1200mm Z Max Travel Height: 150mm
Spindle: 2.2kw Table: T Slot
Motor: Steppor Motor Controller: Ncstudio Or DSP
High Light:

2.2kw cnc router engraver

,

4 feet x 4 feet cnc router engraver

,

cnc router table 4x4 for pvc

XYZ Travel Size 1200X1200X150mm
Max Working Size 1200X1200X150mm
Table Size 1300X1400mm
Transmission Type XYZ ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW China water cool or

5.6KW Italy Elte spindle

Spindle Speed 24000/18000rpm
Max Travel Speed 8000mm/min
Max Processing Speed 5000mm/min
Motor Stepper or Servo
Work Voltage AC380V 50HZ
Controller System Ncstudio or DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1100KG
Overall Dimension 1950X3000X1600mm



Applications and Materials



Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc

Sign Industry: Channel Letter,Mini Letter,signs, etc

Crafts Industry: solid wood,artificial stone,marble,sandstone,aluminum composite panel,bamboo,soft metal,PVC,acrylic,double color board, etc
