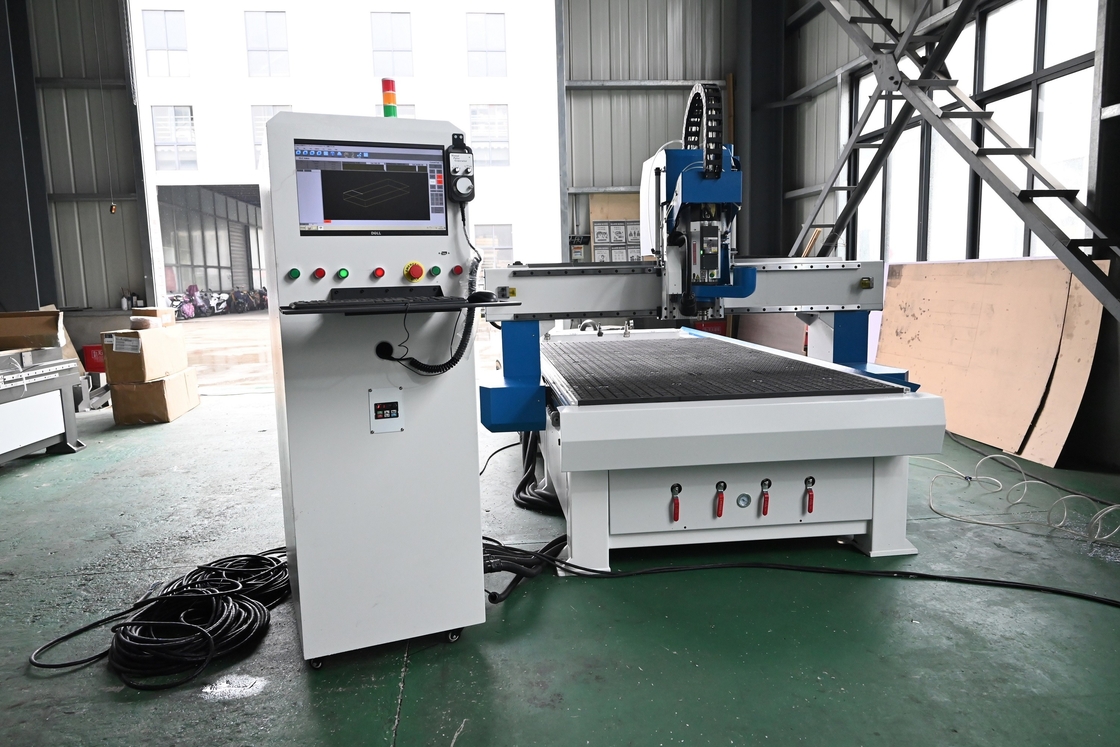

CCD Camera Patrol CNC Router Machine With ATC 4 Zones Vacuum

CCD Camera Patrol CNC Router Machine With ATC 4 Zones Vacuum
CCD Camera Patrol CNC Router Machine With ATC 4 Zones Vacuum

Large Image :  CCD Camera Patrol CNC Router Machine With ATC 4 Zones Vacuum

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1326ATC-C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood+Steel pipe
Supply Ability: 100 per month
Detailed Product Description
Working Size: 1300mm X 2500mm Spindle: 9KW Italy HSD Spindle
Motor: Taiwan Delta Servo Motor Table: Vacuum With 4 Zones
Tool Changer: Linear ATC Controller: Taiwan LNC
CCD: China Leyu
High Light:

CCD Camera Patrol CNC Router

,

4 Zones Vacuum ATC CNC Router

,

CNC Router with ATC

UT1326ATC-C

The edge patrol CNC router with the CCD camera system is applicable for cutting PVC, acrylic, KT, polyethylene, plate sheet, aluminum, and copper sheets, etc. It can not only conduct traditional plane cutting and 3D engraving but also realize the identification of the plate and the image contour of the printed image. It is an excellent choice for users who need large-format cutting and engraving work.

Description

This machine can not only patrol cut but also engrave, drill and mill, so it is suitable for diversified processing needs. Moreover, this machine is equipped with linear tool magazines, and 6 tools can be automatically switched according to the machining requirements, thus greatly improving the user's machining efficiency.

Features

1. Using the new generation CCD, it can scan the pattern edges quickly and efficiently, which effectively improves the processing efficiency.

2. Equipped with HSD air cooling spindle, it has the features of high power and high precision.

3. Manufactured with the large square tube bed, it is more stable and guaranteed accuracy

4. Adopting China Leyu control system, it is convenient and easy to operate.



Parameters


XYZ Travel Size 1350X2900X220mm
Max Working Size 1300X2600X160mm
Table Size 1300X2600mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power

9KW China ATC spindle or Italy HSD ATC spindle



Tool Changer Linear Tool Changer
Spindle Speed 24000rpm
Max Travel Speed 40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or Syntec,or LNC
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1800KG
Overall Dimension 2000X3600X1900mm
