1300X1200mm Aluminum CNC Router Z Ball Screw For Cutting 24000rpm

Product Description

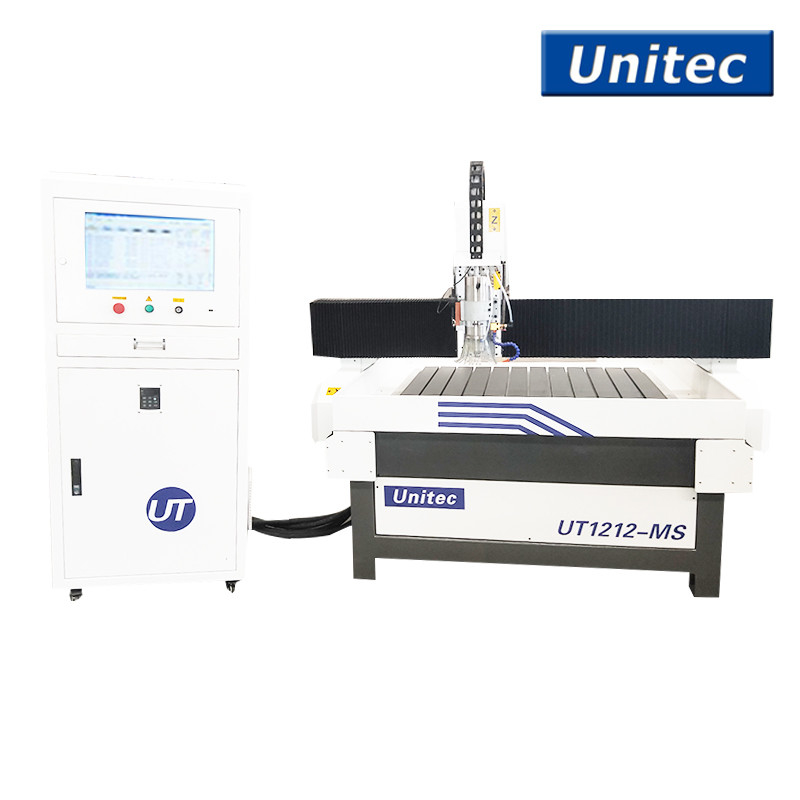

UT1212-MS CNC Router for Cutting Aluminum with CE

STANDARD CONFIGURATION
1. Independent water recirculation cooling system(4 small jets of water for one spindle)
2. Stainless steel sink and stainless steel sheet metal part
3. High speed three axis motion Shanlong CA100 control system
4. High power servo driver system
5. High constant power water cooling spindle
6. Imported 25mm linear guide rails
7. Heavy,all-steel tube frame/thicken gantry/cast gantry supports
8. Aircraft-quality aluminum profile table with T slots+thicken PVC board
9. Drive system X and Y axis: Helical rack and pinon; Z-axis: ball screw
10. XYZ axis are fully covered which has much better protection for the guide rails.
11. Industrial Coolant system.
12. Double electric oil pumps for auto lubrication.
13. Independent Computer Cabinet,stronger power and weak power separate, maintenance easily

CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118

1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-

-

2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

.
