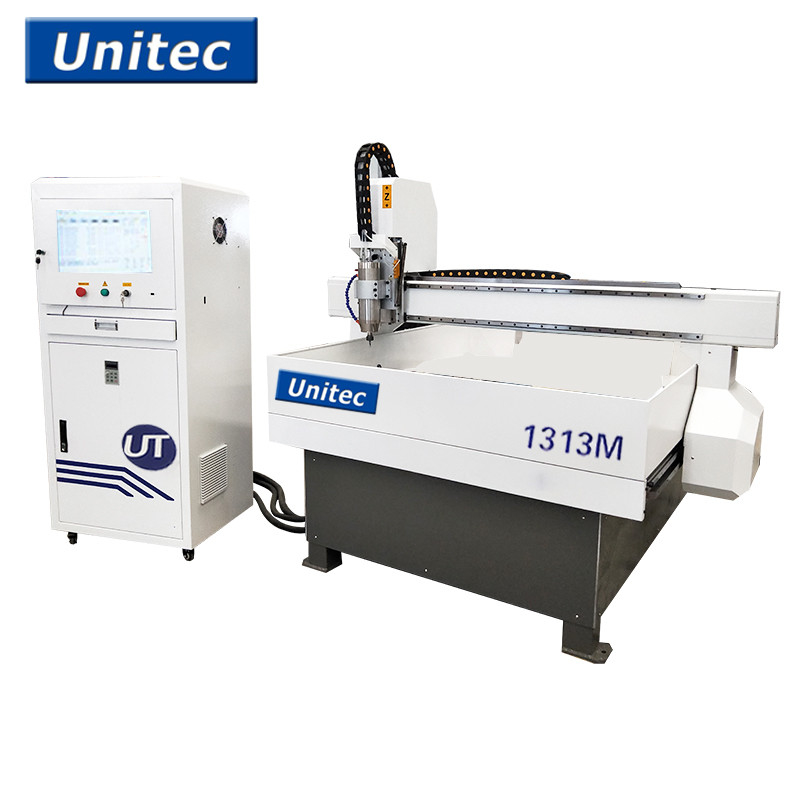

Sunfar Inverter Stepper Motor 3 Axis Aluminium CNC Router

Sunfar Inverter Stepper Motor 3 Axis Aluminium CNC Router
Sunfar Inverter Stepper Motor 3 Axis Aluminium CNC Router

Large Image :  Sunfar Inverter Stepper Motor 3 Axis Aluminium CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1313M

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 15 working days
Detailed Product Description
Table Type: T-slot Table Working Area (X*Y): 1300mm*1300mm*200mm
X,Y,Z Traveling Positioning Accuracy: ±0.03/200mm X,Y,Z Repositioning Accuracy: ±0.03mm
Spindle: 3kw Air/ Water Cooling Spindle Spindle Speed: 0-18000RPM/24000RPM
Guider: Taiwan Hiwin Square Rail Transmission Type: XY Gears Pinion,Z Axis With ø20mm Ballscrews
High Light:

18000RPM Aluminium CNC Router

,

1100kg Aluminium CNC Router

,

24000RPM Aluminium CNC Router

T Slot Table 24000rpm 3 Axis Aluminium CNC Router



1. Machine body design with high strength and double driving motors of Y axis, which have more reasonable design, fast processing speed, easy-operated maintenance and low fault rate.
2. Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.
3. Imported and high precise linear guide ways have features such as stable operation, high precision and steady support, which prolong service life of machines.
4. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.
5. Energy-saving vacuum absorption table function and dust collectors can protect the environment.
6. Software has good compatibility. The machine can be compatible with various CAD/CAM design & making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.



Working Area (X*Y) 1300mm*2500mm*200mm
Table Type T-slot table
X,Y,Z Traveling Positioning Accuracy ±0.03/200mm
X,Y,Z Repositioning Accuracy ±0.03mm
Spindle 3kw Air/ water cooling spindle
Spindle Speed 0-18000RPM/24000RPM
Guider Taiwan Hiwin Square Rail
Transmission Type XY gears pinion,Z axis with ø20mm ballscrews
Control System NC-studio control system
Motor Stepper motor
Inverter Sunfar Inverter
Collets 3.175mm/6mm/12.7mm
Software Artcam
Command G code*.u00*.mmg*.pl
Voltage 3P 380v, 50/60 Hz
Packing Size 3200X2200X1800mm
N.W. 1100kg
Warranty 24 months for machine with 24 hours on-line technical support







Optional parts:

1.Dust Collects
2.Water Chiller CW3000
3.Mach 3 / DSP
4.Servo Motor

5.rotary axis

6.different working area

7.semi-auto lubrication system

8.different power spindle
