2000*6000mm 7.5KW ATC CNC Router Machines With Press Wheel

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

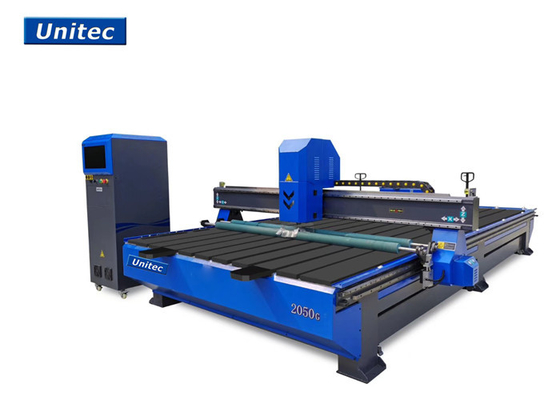

2000*6000mm 7.5KW ATC CNC Router Machines With Press Wheel

2000*6000mm 7.5KW ATC CNC Router Machines With Press Wheel
2000*6000mm 7.5KW ATC CNC Router Machines With Press Wheel

Large Image :  2000*6000mm 7.5KW ATC CNC Router Machines With Press Wheel

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2050G

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
XYZ Travel Size: 2000X6000X100mm Max Working Size: 2000X6000X100mm
Table Size: 2200X6500mm Transmission Type: XY/Z XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T Slot With High Density PVC
Spindle Power: 7.5KW China Spindle With Constant Power Spindle Speed: 24000rpm
High Light:

2000*6000mm ATC CNC Router Machines

,

24000rpm ATC CNC Router Machines

,

7.5KW ATC CNC Router Machines

Aluminum Wood Composite Material Atc Cnc Router Working 2000*6000mm With Press Wheel 3d Carving Cnc



service

1. Service before order: our salesman will try to know more about your demands , including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2. Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3. Service before shipping : the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4. Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5. Service of training : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.



6.Service of warranty : we guarantee the machine for 18month, some machine parts ( quality problems ) can be free charge to replace it within warranty.



Highlights

1. It can be used as a milling machine and punching machine without any interference. The cutting limit speed can reach 15m, which is superior to similar equipment, and the daily production of batch cutting can reach 400-600 square meters.



2. V-groove can be slotted in any shape and angle, including arc groove. The utility model solves the problem that the general slotting machine can only cut straight-line slots, and the unique floating cutter head patent technology of huidiao ensures that the slotting depth is uniform and the slotting precision is high when the aluminum plate surface is uneven and the aluminum cutting surface is not cleaned.



3. To reduce the equipment cost, owning a 2060gat4 is equal to owning a milling machine, a punch and a slotting machine, which saves the

equipment cost.



4. Save workshop space this equipment is multi-purpose, greatly saving workshop space.



5. Saving labor can save labor of two processes.



6. The optimization of production process only needs one positioning and clamping, which can automatically complete the blanking, punching,

punching, slotting and all processes.



7. Because the machine only needs one-time positioning and clamping, it is better than the traditional production process which requires three

clamping to complete the processing mode, greatly improving the positioning accuracy of processing.



8. To improve the efficiency, the equipment only needs one-time clamping, which can automatically complete the processing of three processes:

blanking, punching, slotting, reducing the time waste of aluminum plate secondary clamping, and improving the production efficiency.



9. The automatic programming free system avoids complex programming steps. It only needs to import CAD drawings into the control system of

engraving machine. It can work through simple settings, reduce the workload and the technical difficulty of operators



10. It adopts constant power high-speed air-cooled spindle, with rotation speed up to 24000rpm, strong rigidity, stable high-speed cutting without jitter, smooth section and maintenance free





XYZ Travel Size

2000X6000X100mm



Max Working Size

2000X6000X100mm
Table Size 2200X6500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T Slot with High Density PVC
Spindle Power 7.5KW China Spindle with constant power
Spindle Speed 24000rpm



Max Travel Speed

80000mm/min
Motor Taiwan Delta servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 3500KG
Overall Dimension 3000X6800X1900mm
