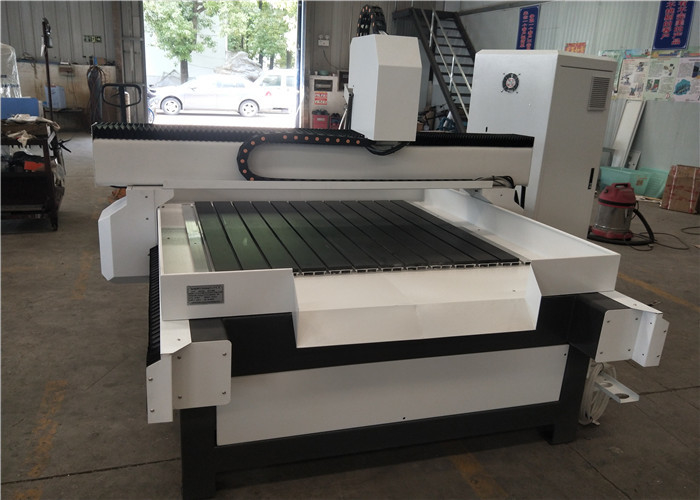

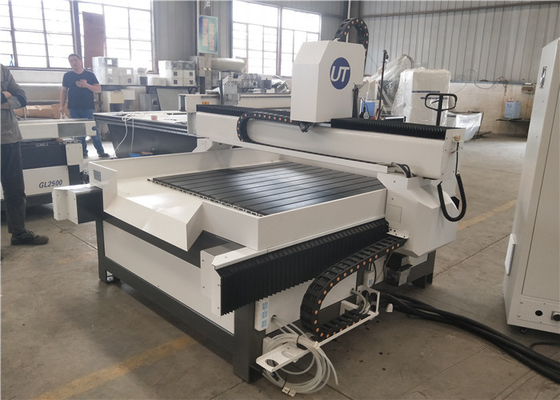

UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine

UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine
UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine

Large Image :  UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1212-MS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
X,Y-Working-area: 1250X1250X200mm Max Working Size: 1200X1200X150mm
Table-size: 1300X1200mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T-Slot
Spindle Power: China Water Cool Spindle 3.0KW/4.4KW Pindle Speed: 24000rpm
High Light:

1300X1200mm CNC Stone Engraving Machine

,

TJ-1212 CNC Stone Engraving Machine

,

24000rpm CNC Stone Engraving Machine

UT1212-MS CNC stone engraving machine with CE



❈ The use of breakpoint memory
ensures the continuing of processing in case of accidents. Such as cutter broke, power failure and stuck unforeseen.
❈ Just a touch of the automatic lubrication system, easy to complete regular maintenance.
❈ Compatible with any advanced CAM/CAD software,such as Type3, Artcam,CAXA,Pro-E,UG, Artcut, Mastercam.
❈ Adopt NCstudio CNC system, keyboard operation, large screen display,easier to operate and maintain, more humanized design



CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-



2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:



XYZ Travel Size 1250X1250X200mm
Max Working Size 1200X1200X150mm
Table Size 1300X1200mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China water cool spindle 3.0KW/4.4KW
pindle Speed 24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 12000mm/min
Motor Step/servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1200KG
Overall Dimension 1900X1900X1600mm





UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine 0UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine 1UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine 2UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine 3UT1212-MS 24000rpm 1300X1200mm CNC Stone Engraving Machine 4
