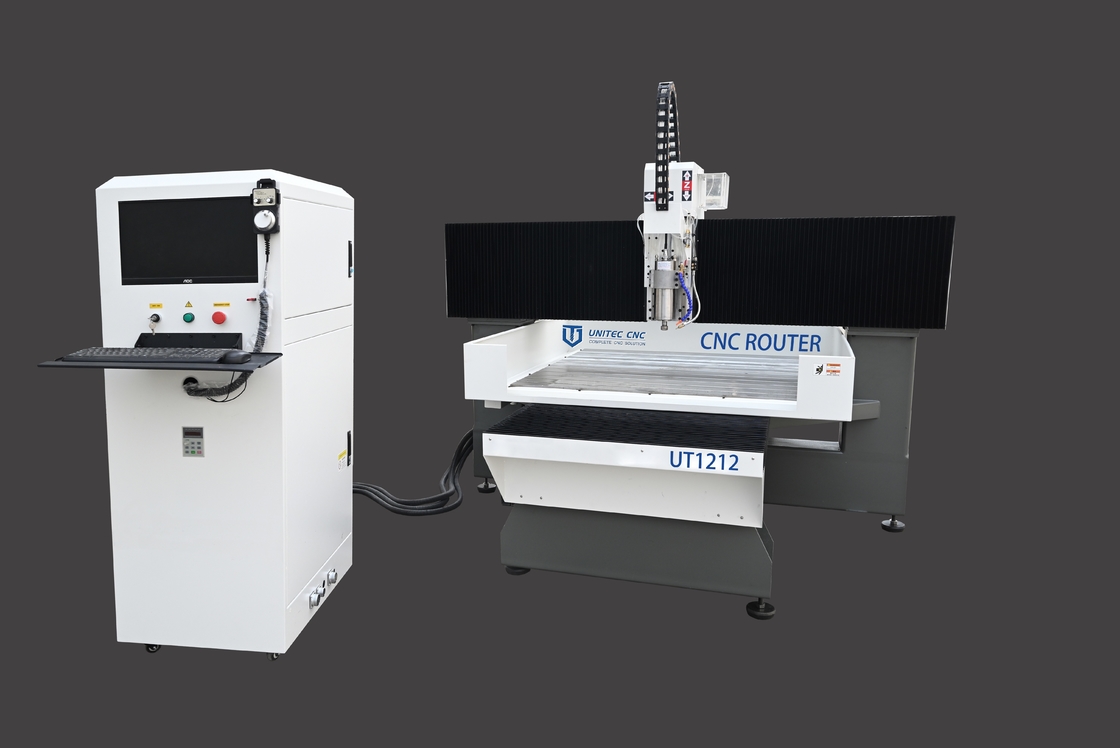

300mm CNC Router Stone Engraving Machine For Cutting Epoxy Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1212-MS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Plywood crate with steel pipe |
| Supply Ability: | 50 Units per month |
|
Detail Information |
|||
| Working Size: | 1200mm X 1200mm | Z Max Travel Height: | 300mm |
|---|---|---|---|
| Spindle: | 7.5KW China Water Cool Spindle | Transmission: | Taiwan TBI Ball Screw |
| Tool Changer: | Linear | Table Type: | T Slot With Water Recycle Cooling System |
| Motor: | Taiwan Delta Servo | ||
| High Light: | CNC Router Stone Engraving Machine,300mm CNC Stone Engraving Machine,Cutting Epoxy Panel CNC Engraving Router |
||
Product Description
Applications and Materials
Decoration Area: marble, artificial stone, granite, ceramic tile, microcrystalline stone, cement board, bluestone
Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel
Highlights
1.Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2.Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3.Various of table styles makes convenient clamping materials and improves overall production efficiency
4.Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.
4.Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5.Main configurations adopts imported accessories which will ensure the overall running performance
6.Strict compliance with CE electrical standards for circuit design and production, and all
Parts have safe and reliable protection device.
| XYZ Travel Size | 1200mmX1200mmX300mm | |
| Max Working Size | 1200X1200X300mm | |
| Table Size | 1200X1200mm | |
| Transmission Type | XYZ XYZ ball screw | Taiwan TBI |
| Guide Rail | Linear Guide | Taiwan CSK |
| Table Type | T slot with water recycle cooling | |
| Spindle Power | 7.5KW Water cool spindle | |
| Inverter | Fulling | |
| Spindle Speed | 24000rpm | |
| Max Travel Speed | 30000mm/min | |
| Max Work Speed | 20000mm/min | |
| Motor | AC servo motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | Ncstudio Or DSP | |
| Processing Accuracy | ±0.05mm | |
| Repeat Positioning Accuracy | ±0.01mm | |
| File Format | G Code/PLT G code or PLT | |
| Overall Weight | 2200KG | |
| Overall Dimension | 2550X2260X2200mm | |
