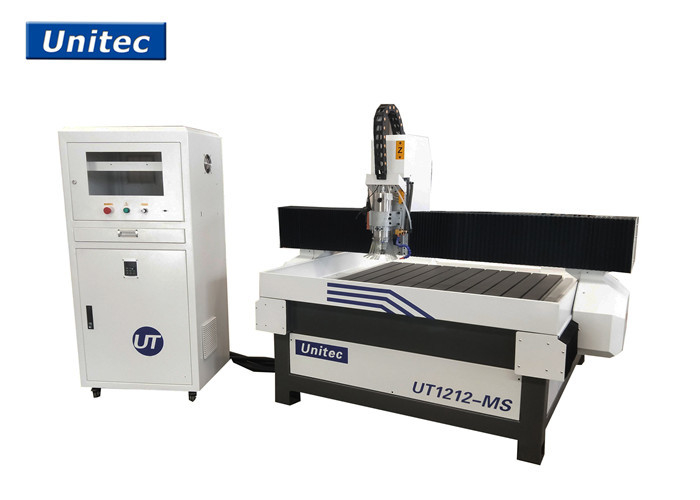

1300X1200mm Linear Guide UT1212-MS CNC Stone Engraving Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

1300X1200mm Linear Guide UT1212-MS CNC Stone Engraving Machine

1300X1200mm Linear Guide UT1212-MS CNC Stone Engraving Machine
1300X1200mm Linear Guide UT1212-MS CNC Stone Engraving Machine

Large Image :  1300X1200mm Linear Guide UT1212-MS CNC Stone Engraving Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1212-MS

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Detailed Product Description
X,Y-Working-area: 1250X1250X200mm Max Working Size: 1200X1200X150mm
Table-size: 1300X1200mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T-Slot
Spindle Power: China Water Cool Spindle 3.0KW/4.4KW Pindle Speed: 24000rpm
High Light:

1200KG CNC Stone Engraving Machine

,

AC380V CNC Stone Engraving Machine

,

1300X1200mm Stone Engraving CNC Router

UT1212-MS CNC stone engraving machine with CE



STANDARD CONFIGURATION
1. Independent water recirculation cooling system(4 small jets of water for one spindle)
2. Stainless steel sink and stainless steel sheet metal part
3. High speed three axis motion Shanlong CA100 control system
4. High power servo driver system
5. High constant power water cooling spindle
6. Imported 25mm linear guide rails
7. Heavy,all-steel tube frame/thicken gantry/cast gantry supports
8. Aircraft-quality aluminum profile table with T slots+thicken PVC board
9. Drive system X and Y axis: Helical rack and pinon; Z-axis: ball screw
10. XYZ axis are fully covered which has much better protection for the guide rails.
11. Industrial Coolant system.
12. Double electric oil pumps for auto lubrication.
13. Independent Computer Cabinet,stronger power and weak power separate, maintenance easily



CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-

-

2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

XYZ Travel Size 1250X1250X200mm
Max Working Size 1200X1200X150mm
Table Size 1300X1200mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China water cool spindle 3.0KW/4.4KW
pindle Speed 24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 12000mm/min
Motor Step/servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1200KG
Overall Dimension 1900X1900X1600mm
