4X8FT 3D Stone Carving Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

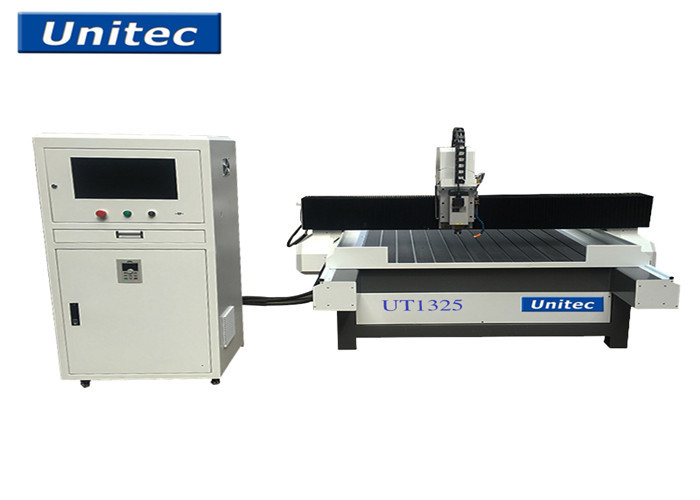

4X8FT 3D Stone Carving Machine

4X8FT 3D Stone Carving Machine
4X8FT 3D Stone Carving Machine

Large Image :  4X8FT 3D Stone Carving Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-MS
Detailed Product Description
XYZ Travel Size: 1350X2550X200mm Max Working Size: 1300X2500X150mm
Table-size: 1400X2500mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T-Slot
Spindle Power: China Water Cool Spindle 3.0KW/4.4KW Pindle Speed: 24000rpm
High Light:

UT1325-MS 3D Stone Carving Machine

,

4X8FT 3D Stone Carving Machine

,

24000rpm 3D Stone Carving Machine

UT1325-MS 1325 CNC Router 4X8FT Wood And Stone Engraving Machine 3D Carving Machine

  • Heavy duty type and profiled steel welded lathe bed, stabilizing treated under high temperature for strong bearing capacity
  • Big power 3.2 / 4.5 / 5.5kw water cooling, Low noise high rotated speed (24000rpm)
  • Famous brand Fuling / Delta inverter make spindle working stable
  • Hiwin/TBI brand 25 square guide rails and pinion and rack
  • Continue working after the break point / power failure, lower the rejection rate.
  • Y adopt durable driving by synchronizing wheel consist of belt and gear shaft.
  • Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
  • Overall dust-proof and water-proof design protects all moving parts of machine.



CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-

-

2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

XYZ Travel Size 1350X2550X200mm
Max Working Size 1300X2500X150mm
Table Size 1400X2500mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China water cool spindle 3.0KW/4.4KW
pindle Speed 24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 12000mm/min
Motor Step/servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1800KG
Overall Dimension 1900X3100X1600mm





4X8FT 3D Stone Carving Machine 04X8FT 3D Stone Carving Machine 14X8FT 3D Stone Carving Machine 24X8FT 3D Stone Carving Machine 34X8FT 3D Stone Carving Machine 44X8FT 3D Stone Carving Machine 5
