4 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

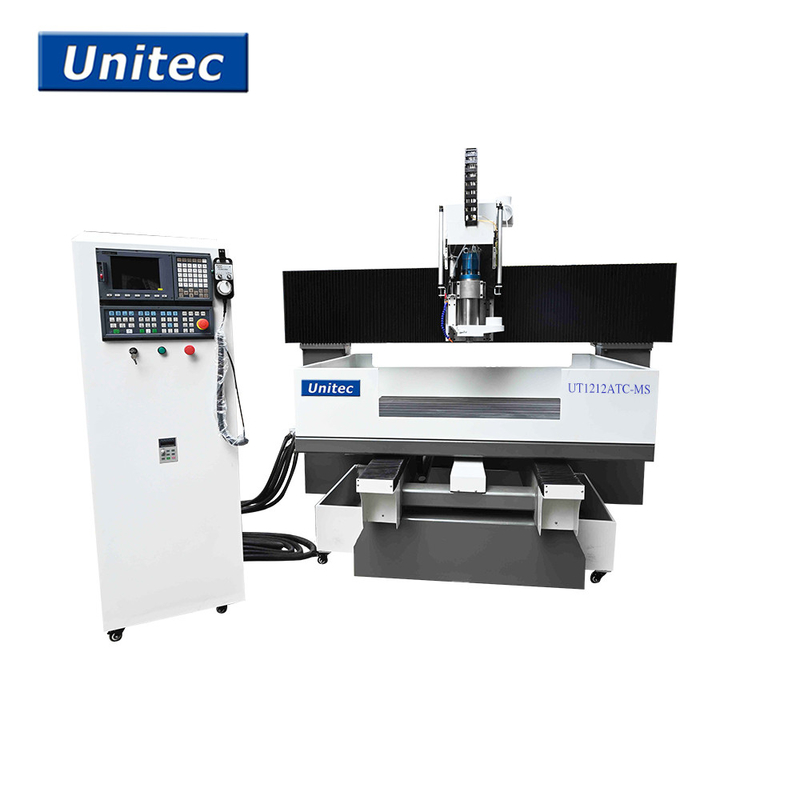

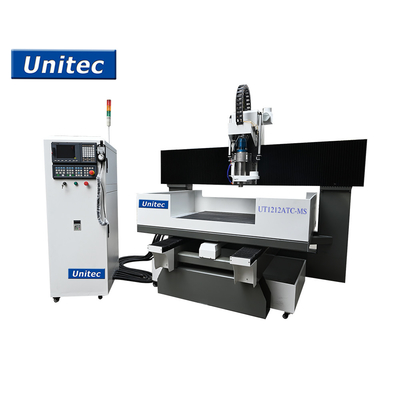

4 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone

4 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone
4 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone 4 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone 4 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone

Large Image :  4 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1212ATC-MS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood crate with steel pipe
Detailed Product Description
Working Size: 1200mm X 1200mm Z Max Travel Height: 300mm
Spindle: 7.5KW China Water Cool ATC Spindle Transmission: Taiwan TBI Ball Screw
Tool Changer: Linear Table Type: T Slot With Water Recycle Cooling System
Motor: Taiwan Delta Servo
High Light:

4 feet x 4 feet atc machinery

,

4 feet x 4 feet atc machine

,

engraving marble atc machine



Applications and Materials

Decoration Area: marble, artificial stone, granite, ceramic tile, microcrystalline stone, cement board, bluestone

Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel



Highlights

1.Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability

2.Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.

3.Various of table styles makes convenient clamping materials and improves overall production efficiency

4.Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.

4.Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.

5.Main configurations adopts imported accessories which will ensure the overall running performance

6.Strict compliance with CE electrical standards for circuit design and production, and all

Parts have safe and reliable protection device.





XYZ Travel Size 1200mmX1200mmX300mm
Max Working Size 1200X1200X300mm
Table Size 1200X1200mm
Transmission Type XYZ XYZ ball screw Taiwan TBI
Guide Rail Linear Guide Taiwan CSK
Table Type T slot with water recycle cooling
Spindle Power 7.5KW Water cool spindl with tool changer
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm
Max Travel Speed 30000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT G code or PLT
Overall Weight 2200KG
Overall Dimension 2550X2260X2200mm




4 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone 04 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone 14 Feet X 4 Feet Atc Machine For Stone Engraving Marble Granite Sandstone 2
