4000mm/min AC220V UT3020 CNC Stone Engraving Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

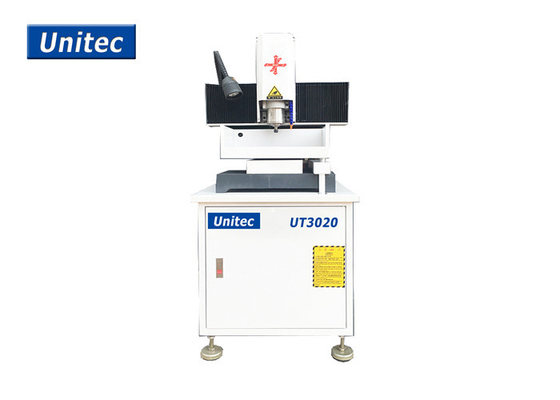

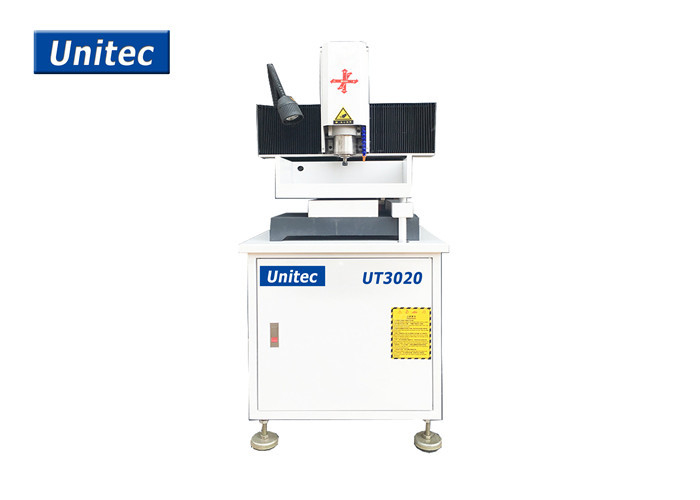

4000mm/min AC220V UT3020 CNC Stone Engraving Machine

4000mm/min AC220V UT3020 CNC Stone Engraving Machine
4000mm/min AC220V UT3020 CNC Stone Engraving Machine

Large Image :  4000mm/min AC220V UT3020 CNC Stone Engraving Machine

Product Details:

Model Number: UT3020
Detailed Product Description
XYZ Working Size: 300mm X 250mm X 140mm Max Feeding Height: 150mm
Spindle Power: 1.5KW / 2.2KW Tool Diameter: 3.175 / 4 / 6mm
Max Spindle Speed: 6000-24000RPM Max.Cutting Speed: 4000mm Per Min
Repositioning Accuracy: 0.01mm Controller: Ncstudio
High Light:

150mm CNC Stone Engraving Machine

,

0.01mm CNC Stone Engraving Machine

,

AC220V CNC Stone Engraving Machine

UT3020 CNC stone engraving machine with CE



FUNCTIONAL FEATURES

❈ Servo drive system, high precision, high cutting force, and the bit is not easy to wear.
❈ High Z axis feeding height(350mm/380mm/420mm/500mm/680mm options), suitable for any thick stone material.
❈ Adopting high power spindle
motor(4.5Kw/5.5Kw/7.5Kw ) for powerful carving and cutting.
❈ Aircraft-quality aluminum profile table with T slots which adding
thicken PVC board, Enhancing the loading capacity of the platform



CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-

-

2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

Model UT3020
XYZ working size 300mm X 250mm X 140mm
Max Feeding Height 150mm
Spindle Power 1.5KW / 2.2KW
Tool Diameter 3.175 / 4 / 6mm
Max Spindle Speed 6000-24000RPM
Max.Cutting Speed 4000mm per min
Repositioning Accuracy 0.01mm
Controller Ncstudio
File Format PLT , G CODE
Voltage AC220V
