1500X2500 5KW CNC Stone Engraving Machine For Stone Processing

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

1500X2500 5KW CNC Stone Engraving Machine For Stone Processing

1500X2500 5KW CNC Stone Engraving Machine For Stone Processing
1500X2500 5KW CNC Stone Engraving Machine For Stone Processing 1500X2500 5KW CNC Stone Engraving Machine For Stone Processing

Large Image :  1500X2500 5KW CNC Stone Engraving Machine For Stone Processing

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-X5

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
XYZ Travel Size: 1000X2500X200 Max Working Size: 1300X2500X200mm
Table-size: 1500X2500 Transmission Type: Helical Rack And Pinion; Taiwan Linear Guide Rail
Motor: Easy Servo Table Type: T-Slot With Water Basin And Recycle Cooling System
Spindle Power: 5 X 1.5KW Water Cool Spindle Max.Travel Speed: 14000mm/min
High Light:

1500X2500 CNC Stone Engraving Machine

,

9KW CNC Stone Engraving Machine

,

1200KG CNC Stone Engraving Machine

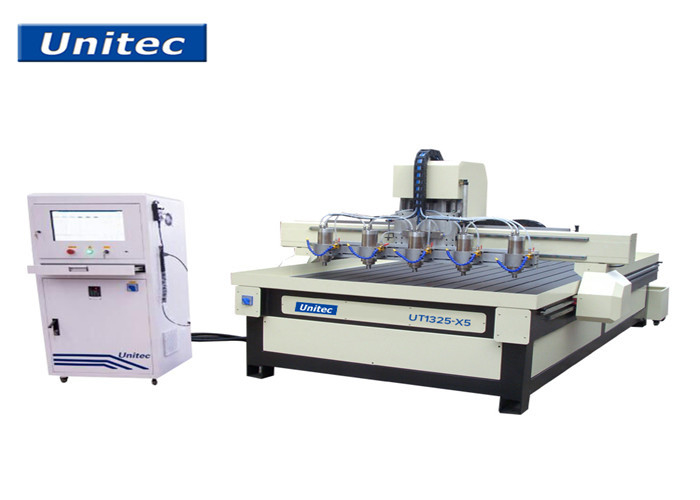

UT1325-X5 1325 CNC Stone Engraving Machine For Stone Processing



The Stone cnc machine used for Marble, Granite, Bluestone, Jade, Crystal, Tombstone, Agate, Ceramics, Glass, Plastics, Synthetic I, Bamboo, Wood, Curved, Spherical, Stainless, Iron, Copper, Lead, Titanium and so on. It can sculpture in the stone, glass body, patterns, Yin carving, Yang carving, hand-written characters, celebrity calligraphy, matte painting, flat carved painting.





CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-

-

2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

Model UT1325-X5
Table size 1500X2500
XYZ working size 1000X2500X130
Table T-Slot with water basin and recycle cooling system
Transimission helical rack and pinion; Taiwan Linear Guide Rail
Motor easy servo
Spindle Power 5 x 1.5KW water cool spindle
Max.Travel Speed 14000mm/min
Controller original ncstudio/DSP/MACH3
File Format .nc/.u00/.plt
Software router8
Voltage 220V/50~60HZ
Total Power Consumption 9KW
Machine Net Weight 1200KG
Overall Dimension 1950X3000X1700



1500X2500 5KW CNC Stone Engraving Machine For Stone Processing 01500X2500 5KW CNC Stone Engraving Machine For Stone Processing 11500X2500 5KW CNC Stone Engraving Machine For Stone Processing 21500X2500 5KW CNC Stone Engraving Machine For Stone Processing 31500X2500 5KW CNC Stone Engraving Machine For Stone Processing 4
