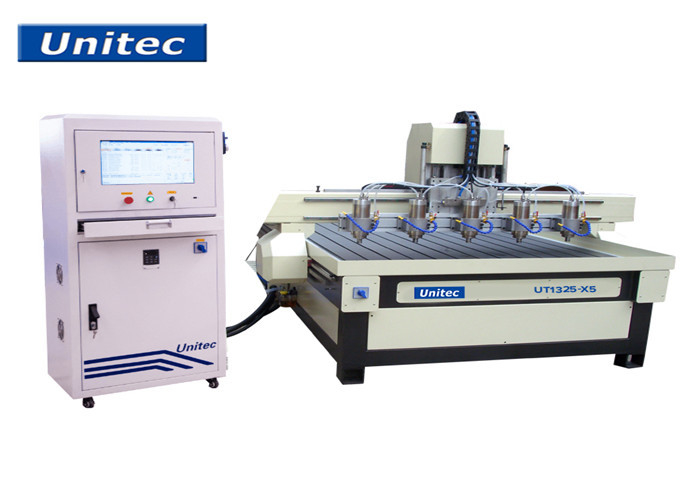

High Speed 1325 4 Axis CNC Router Machine For Wood Stone

High Speed 1325 4 Axis CNC Router Machine For Wood Stone
High Speed 1325 4 Axis CNC Router Machine For Wood Stone High Speed 1325 4 Axis CNC Router Machine For Wood Stone

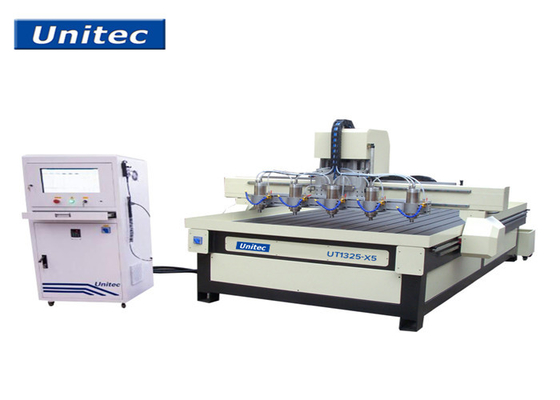

Large Image :  High Speed 1325 4 Axis CNC Router Machine For Wood Stone

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-X5

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
XYZ Travel Size: 1000X2500X200 Max Working Size: 1300X2500X200mm
Table-size: 1500X2500 Transmission Type: Helical Rack And Pinion; Taiwan Linear Guide Rail
Motor: Easy Servo Table Type: T-Slot With Water Basin And Recycle Cooling System
Spindle Power: 5 X 1.5KW Water Cool Spindle Max.Travel Speed: 14000mm/min
High Light:

1325 4 Axis CNC Router Machine

,

9KW 4 Axis CNC Router Machine

,

Unitec 4 Axis CNC Router Machine

Ut1325-X5 High Speed 1325 4 Axis Cnc Router Atc Engraving Cutting Machine For Wood Stone



Brief Introduction of 4 axis cnc router

  • The spindle can rotated 180 degree, specially designed for curve surface cabinet,doors and indoor decoration. and also for some mold prcessing.
  • It can be used for mass-processing with Vacuum holding way and dust collector.
  • Equipped with top quality components for the machine, such as HSD ATC spindle, and the spindle Yaskawa servo motor & Taiwan Delta Inverter, Becker Vacuum pump,
  • Hiwin linear square guide rails, SYNTEC control system and so on, to keep the machine in the best condition even after working for many years.
  • Equipped with 400mm rotary axis



CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-

-

2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

Model UT1325-X5
Table size 1500X2500
XYZ working size 1000X2500X130
Table T-Slot with water basin and recycle cooling system
Transimission helical rack and pinion; Taiwan Linear Guide Rail
Motor easy servo
Spindle Power 5 x 1.5KW water cool spindle
Max.Travel Speed 14000mm/min
Controller original ncstudio/DSP/MACH3
File Format .nc/.u00/.plt
Software router8
Voltage 220V/50~60HZ
Total Power Consumption 9KW
Machine Net Weight 1200KG
Overall Dimension 1950X3000X1700
