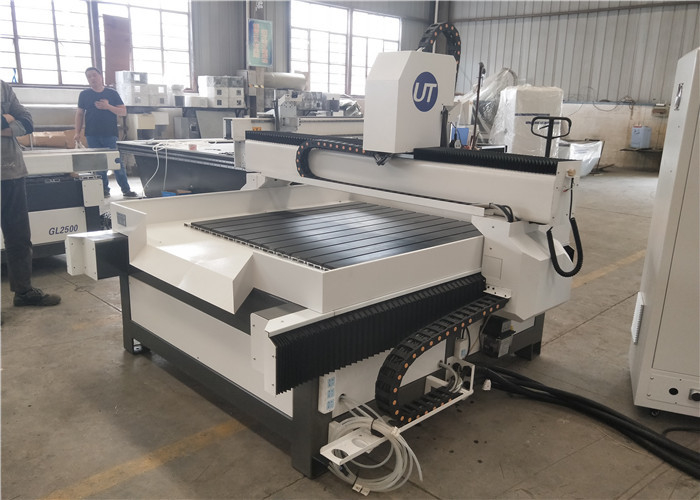

3.0kw UT1325A Stone CNC Router Carving Machine For Marble
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1325A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
|||
| XYZ Travel Size: | 1350X2550X200mm | Max Working Size: | 1300X2500X150mm |
|---|---|---|---|
| Table Size: | 1400X2500mm | Transmission Type: | XY Rack/Z Ball Screw |
| Guide Rail: | Linear Guide | Table Type: | T-Slot |
| Spindle Power: | China Water Cool Spindle 3.0KW/4.4KW | Pindle Speed: | 24000rpm |
| High Light: | UT1325A CNC Router Carving Machine,3.0kw CNC Router Carving Machine,UT1325A Cutting Engraving Machine |
||
Product Description
1325 CNC Router Cutting Engraving Machine /3.0kw Stone CNC Router Carving Machine
Applications and Materials
- Engineering decoration Area: marble, artificial stone, granite, ceramic tile, microcrystalline stone, cement board, bluestone
- Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS pane
Highlights
- Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
- Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
- Various of table styles makes convenient clamping materials and improves overall production efficiency
- Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing.
- Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
- Main configurations adopts imported accessories which will ensure the overall running performance
- Strict compliance with CE electrical standards for circuit design and production, and all
Parts have safe and reliable protection device.
| XYZ Travel Size | 1350X2550X200mm |
| Max Working Size | 1300X2500X150mm |
| Table Size | 1400X2500mm |
| Transmission Type | XY rack/Z ball screw |
| Guide Rail | Linear Guide |
| Table Type | T-Slot |
| Spindle Power | China water cool spindle 3.0KW/4.4KW |
| pindle Speed | 24000rpm |
| Max Travel Speed | 20000mm/min |
| Max Work Speed | 12000mm/min |
| Motor | Step/servo motor |
| Work Voltage | AC380V 50HZ |
| Controller System | Ncstudio/DSP |
| Processing Accuracy | ±0.05mm |
| Repeat Positioning Accuracy | ±0.01mm |
| File Format | G code or PLT |
| Overall Weight | 1800KG |
| Overall Dimension | 1900X3100X1600mm |
Applications and Materials
Stone Industry: Marble, granite,bluestone,sand stone, etc
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing
4. Professional water cooling spindle specially for stone engraving
5. Equipped with water recycle cooling system with water tank
6. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality
7. Main configurations adopts imported accessories which will ensure the overall running performance
